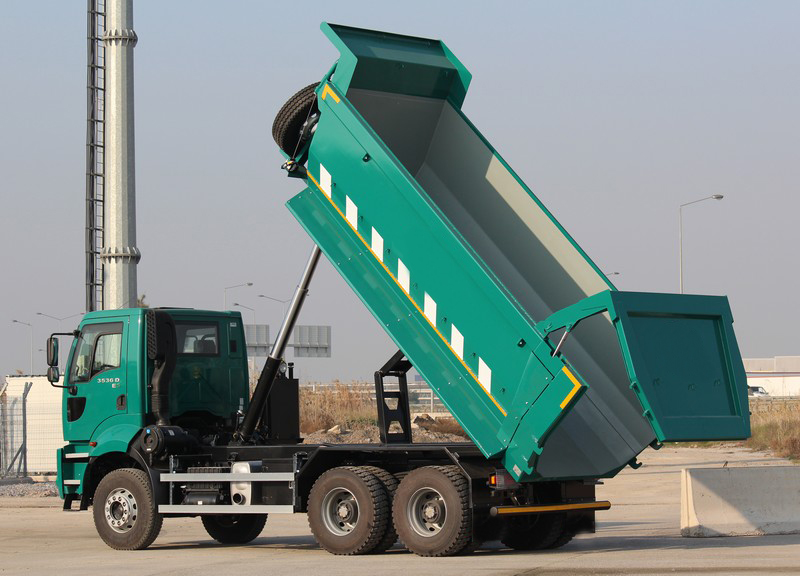

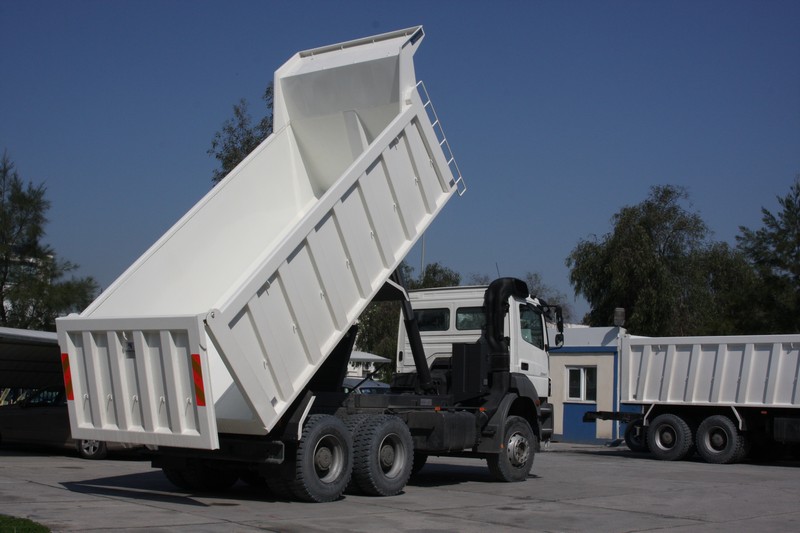

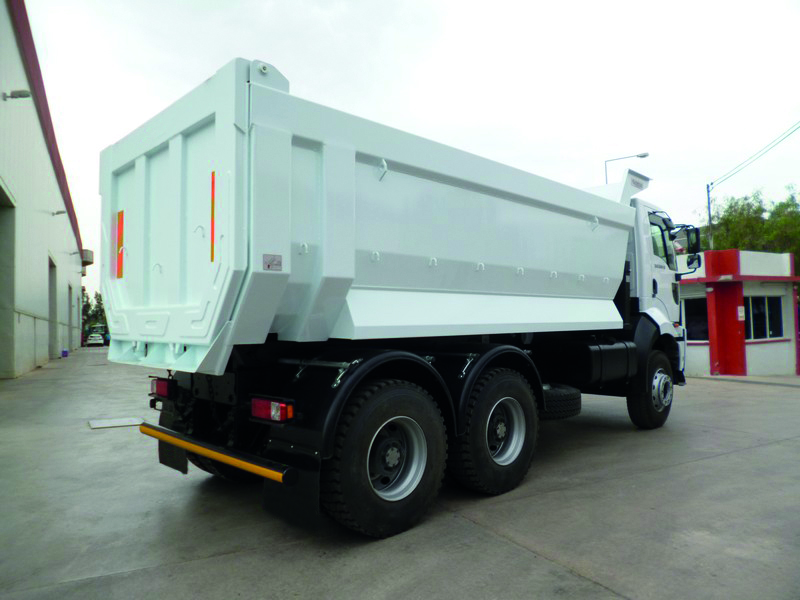

Tipper
Tipper has the capability to manufacture both sand and stone type tipper and tipper trailers either normal type or half pipe type (u) with hydraulic tail gates option, tipper bodies can be made out of normal steel (st-37,st-52) or Hardox material.
Body
All body and gates are being supported with vertical steel ‘u’ type profiles considering the capacity. Side doors can be produced either fixed or movable. The rear gate is attached from the top and has the automatically locking type and/or with hydraulic tailgate. Is supported by supporting profiles.
Lifting Mechanism
Body is being lifted from the front by telescopic type cylinder.
Hydraulic Installation
Hydraulic power is supplied by the transfer of energy from PTO to the pump. PTO is controlled from the driver cab. The oil tank has 70lt capacity. On the tank there are, 125” suction filter, and 25” return filter with ventilation, level indicator, special valve, and releasing tap. All pipes used in the installation are suitable with DIN NORMS.
Tipper Trailer
2 or 3 axles options. Chassis and axles, brakes and electrical installations are produced accordingly with the regulated norms. Hydraulic System and Fuel Pump is driven by PTO. Mechanical legs are operated parallelly, with double speed, telescopic, static has 50 ton- dynamic 25 ton capacity.
Tipper Semi Trailer Accessories
- Tool box
- Mudguard that covers rear axle wheels
- Ladder at right side
- Hooks at rear, side and front gates
- Water tank for washing hand
